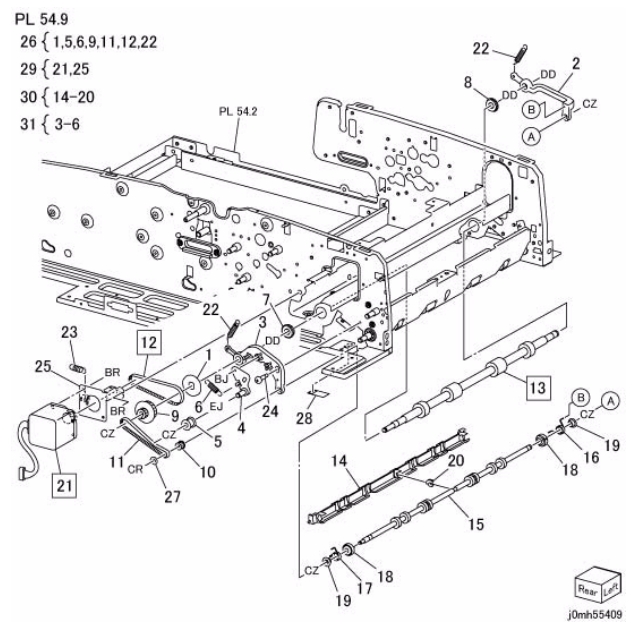

Item Parts No Description A.C.

1 – Flange (P/O Item 26) 22M1

2 012E 11440 Platen Front Link 22M2

3 012E 11450 Platen Rear Link 22M3

4 – Tension Bracket (P/O Item 31)22M4

5 059E 07700 Pulley 22M5

6 809E 51440 Tension Spring 22M6

7 013E 24670 Ball Bearing 22M7

8 013E 25911 Sleeve Bearing 22M8

9 020E 36790 Pulley 22M9

10 020E 36800 Pulley 22MB

11 023E 21310 Belt (Width : 4mm) 22MC

12 023E 21320 Platen Motor Belt (Width : 6mm) (REP 54.9.1)22MD

13 059K 31071 Out Roll (REP 54.9.2) 22ME

14 815E 65600 Platen Back Plate 22MF

15 059K 30964 Platen Roll 22MG

16 809E 50280 Torsion Spring (Left Wind)22MH

17 809E 50130 Torsion Spring (Right Wind)22MJ

18 013E 24680 Bearing 22MK

19 005E 18160 Collar 22ML

20 005E 18810 Platen Collar 22MM

21 127K 38341 (SCC) DADF Platen Motor (REP 99.1.1)22MN

22 809E 50510 Spring Platen (Length 30.8mm)22MP

23 809E 50880 Spring Platen (Length 23mm)22MQ

24 826E 09061 Shoulder Screw (Alternate)22MR

– 826E 31120 Shoulder Screw (Alternate)22MR

25 – Motor Bracket (P/O Item 29)22MS

26 604K 25230 Spare Parts Kit (Item 1, 5, 6, 9, 11, 12, 22)22MT

27 103E 36100 Washer 22MV

28 105K 21210 Eliminator 22MW

29 127K 63390 Platen Motor Assembly (Item 21, 25)22MX

30 059K 69270 Platen Roll Assembly (Item 14-20)22N1

31 012K 96860 Platen Rear Link Assembly (Item 3-6)22N2
