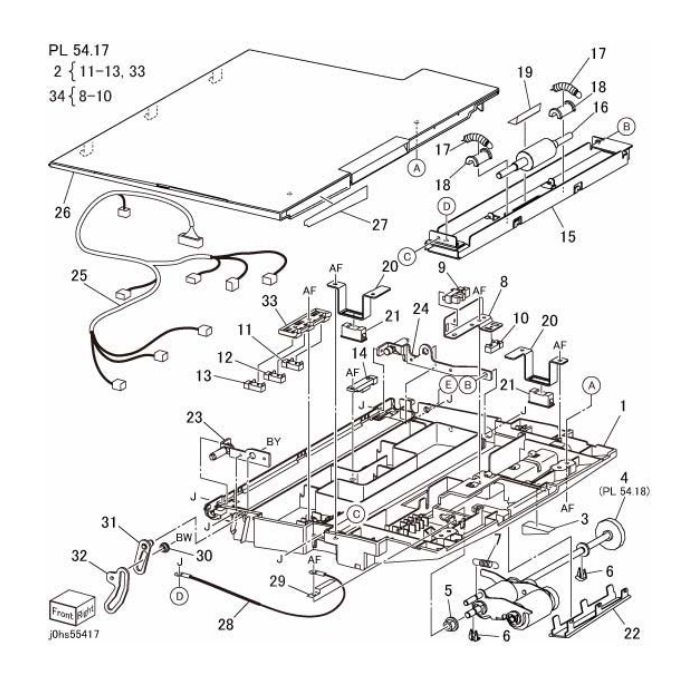

Item Parts No Description A.C.

2 130K 77230 APS Sensor Assembly (Item 11-13, 33)

3 055K 31520 Sensor Shield

4 848K 49330 Feeder/Nudger Roll Assembly (PL 54.18)

6 028E 94260 KL-Clip

7 809E 50120 Tension Spring

9 930W 00121 DADF Level Sensor

10 930W 00222 DADF Feed Sensor

11 930W 00222 DADF No.1 APS Sensor

12 930W 00222 DADF No.2 APS Sensor

13 930W 00222 DADF No.3 APS Sensor

14 130E 87400 DADF Pre Regi. Sensor

16 059K 71100 Pinch Roll

17 809E 50250 Tension Spring

18 013E 24660 Garter Bearing

19 105K 21190 Eliminator

21 121K 47090 Magnet Catch

22 032E 37690 Chute Guide

23 003K 88310 Front Hinge

24 003K 88320 Rear Hinge

25 962K 86780 DADF Feeder Wire Harness

26 822E 08340 Feeder Upper Cover

27 890E 09700 Label (Size)

29 809E 58361 Plate Spring

33 848E 58430 Sensor Housing

34 130K 77220 Sensor Assembly (Item 8-10)
